- Most economical in 50 HP range
- Rugged, maneuverable and compact
- Easy accessibility to service points
- Ideal, versatile, all round tractor.
- Spring suspension deluxe Seat
- Availability of parts and service facilities at your doorstep
|
 |
 Techinical Specifications |

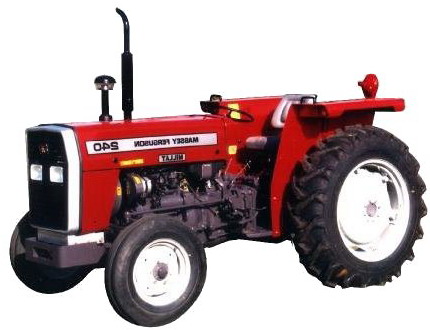

Technical Specification of Tractors MF240
|
|
|
|
|
| Make / Type |
Perkins / AD 3.152 |
| No. of cylinders |
3 |
| Injection |
Direct |
| Bore |
91.4 mm |
| Stroke |
127.0 mm |
| Capacity |
2.5 |
| Compression ratio |
16.5 : 1 |
| Starting aid |
Thermostart |
| Throttle control |
Hand & foot |
| Cooling |
Water |
| Air cleaner |
Oil bath |
| Air Pre cleaner |
Over bonnet, air swirl |
| Fuel filter |
Dual, high capacity |
| Exhaust |
Vertical |
|
|
|
| Voltage |
12 V, negative earth |
| Battery |
96 Ah |
| Starter |
2.2 kW |
| Alternator |
32 Amp |
|
|
|
| Type |
Dual clutch |
| Diameter |
305 x 254 mm |
|
|
|
| Type |
Sliding Spur |
| Number of gears |
8 forward, 2 reverse |
Road speed at 2,250 engine rpm with
12.4 / 11 - 28 rear tyres |
|
| Gear |
kph |
| Forward 1 |
2.7 |
| Forward 2 |
3.9 |
| Forward 3 |
5.3 |
| Forward 4 |
7.2 |
| Forward 5 |
10.6 |
| Forward 6 |
15.6 |
| Forward 7 |
21.3 |
| Forward 8 |
28.6 |
| Reverse 1 |
3.6 |
| Reverse 2 |
14.5 |
|
|
|
| Type |
Live |
| Engine speed @ 540 PTO rpm |
1,789 rpm |
| Shaft diameter |
35 mm |
| No. of splines |
6 |
|
|
|
| Functions |
Draft control, Position control, Response control, Constant Pumping |
| Pump Type |
Reciprocating Ferguson pump |
| Maximum oil flow |
16 / min |
| Maximum pressure |
19.2 MPa |
| Max. lift capacity with lower links horizontal |
1,415 kg |
| Lower Links |
Cat. 1 & 2 with interchageable balls |
|
|
|
| Type |
Box Section, Adjustable |
|
|
|
|
|
|
| Brake Type |
Out board drum brakes |
| Actuation |
Mechanical, independent or locked together |
| Parking brake |
Hand lever operated |
| Differential lock |
Mechanical |
|
|
|
| Gauges |
Tachometer, Hourmeter, Fuel level, Battery condition & Water temperature |
| Warning lights |
Direction indicators, Battery charge, Headlight main beam,Low engine oil pressure |
|
|
|
| Front |
6.00 - 16 (6 PR) |
| Rear |
12.4 / 11 - 28 (6 PR) |
|
|
|
| Front |
1,245 - 1,854 mm |
| Rear |
1,321 - 1,930 mm |
|
|
|
| Weight |
| Gross Weight |
1,690 kg |
| Dimensions |
| Wheel base |
1,892 mm |
| Overall length |
3,260 mm |
| Overall width |
1,651 mm |
| Height |
| Over exhaust |
2,145 mm |
| Over steering wheel |
1,410 mm |
| Turning circle |
| With brakes |
5,560 mm |
| Without brakes |
6,200 mm |
| Ground clearance |
338 mm |
|
|
|
| Fuel tank |
47.5 |
| Engine sump |
6.8 |
| Cooling system |
10.2 |
| Hydraulic system |
33 |
| Steering box |
0.9 |
| Oil bath air cleaner |
0.65 |
|
|
|
| Chain stabilizers, Check chains, Spring suspension seat, Flat top fenders, Standard tool box with set of tools, Weight frame without weights, Top link, Cat.-2 balls, Operator's manual |
|
|
|
| Front end weights, 9 hole draw bar, Sun Canopy |
|
|
|
|
